NSCaster Mini

Simple And Extraordinary

PDFBuy Now

Main Introduce

NSCaster Mini is an all-in-one professional live production device. From new streaming industry prospective, it is resigned by thinking of input, output, control of live production with 427mmx133.9mmx307mm limited size. It realizes capturing, transition, monitoring, mixer, subtitles, recording, streaming and varieties of live production features. It brings you a simple, easy and speed concept of new live streaming.

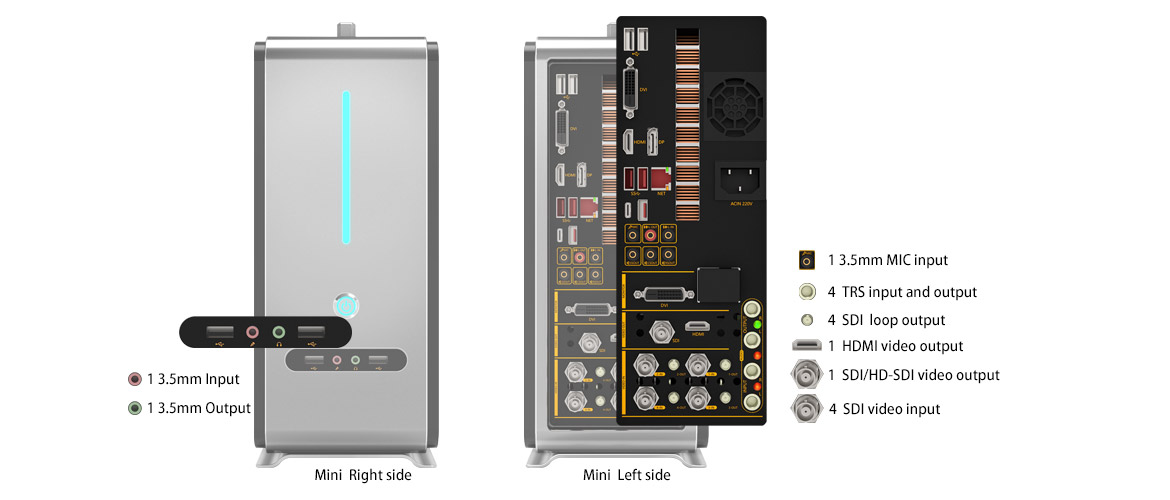

Interface

Traditional cameras, sports cameras, UAVs and mobile phones have become the main participants in live broadcasting nowadays. Equipment interconnection has become the key to live broadcasting while NSCaster-Mini has become smart choice for live broadcasting because of its large number of interfaces and rich interface types.

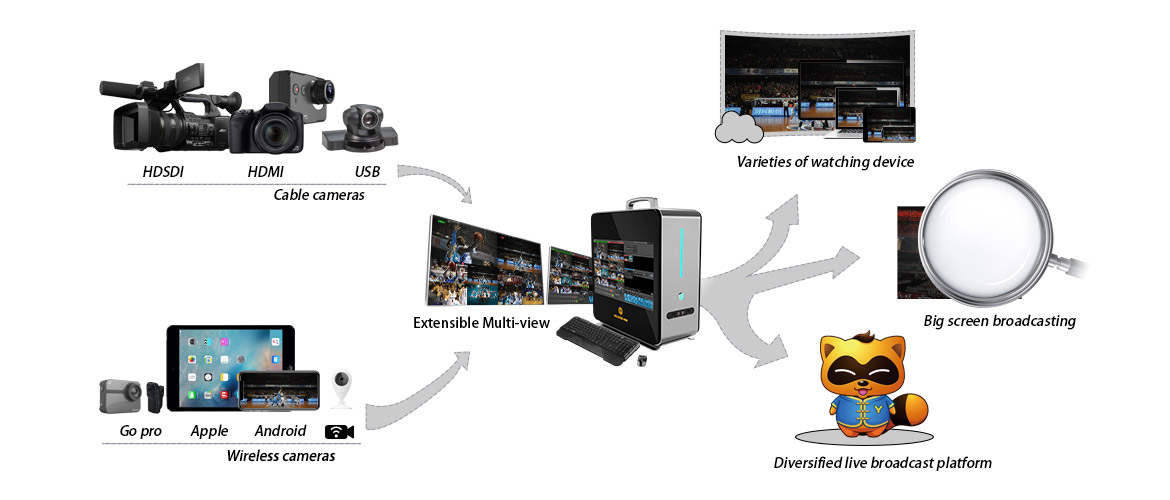

Full equipment connection

NSCaster-Mini has a wide variety of output interfaces, which enable you to cope with complex on-site environment and complete the new live broadcasting of full-channel, full-platform and full-screen.

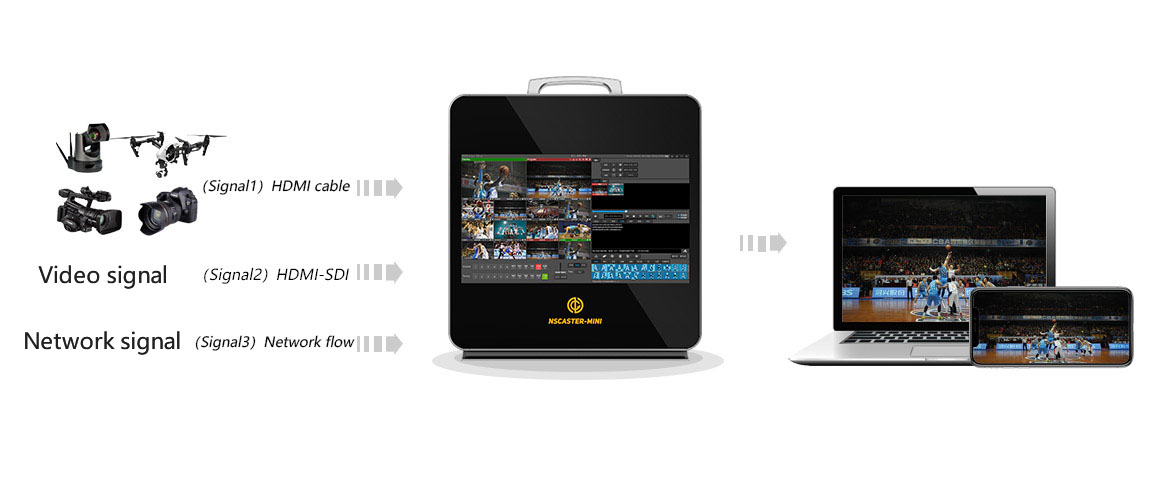

Faster and richer choice of Live production

NSCaster-Mini can support 4 channels of SDI video source, 2 channels of DDR local video source, 6 channels of network signal input, and various source from virtual channel and CG.

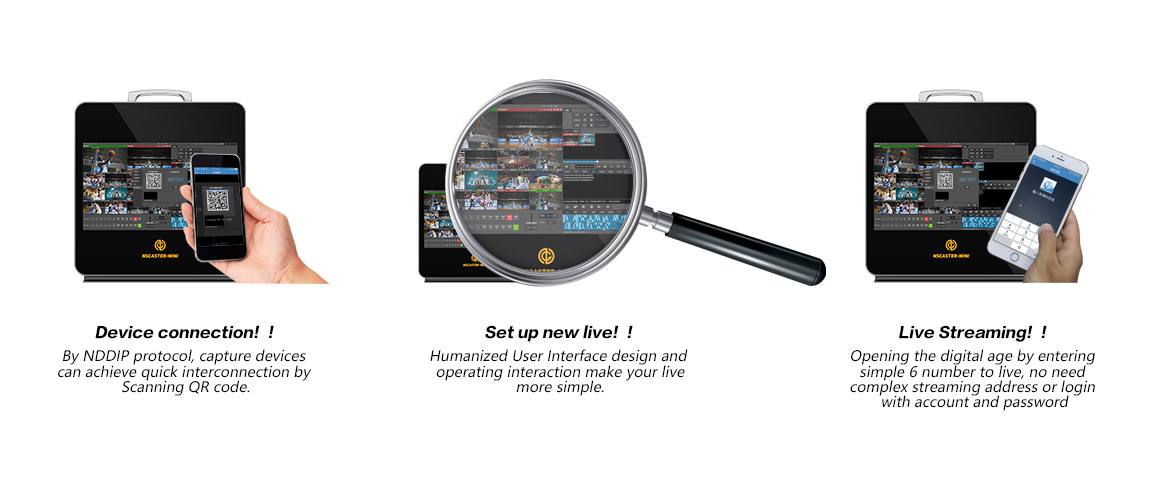

Set up new live streaming

From new streaming prospective, NSCaster need only one operator and three steps to realize a simple and easy way of live.

Make it simple and multi-purpose in use

NSCaster-Mini is committed to creating ‘new media, new applications, new live broadcasting’ With "new perspective", it makes a new thinking and design of live broadcasting. Make live broadcasting lighter, simpler and faster.

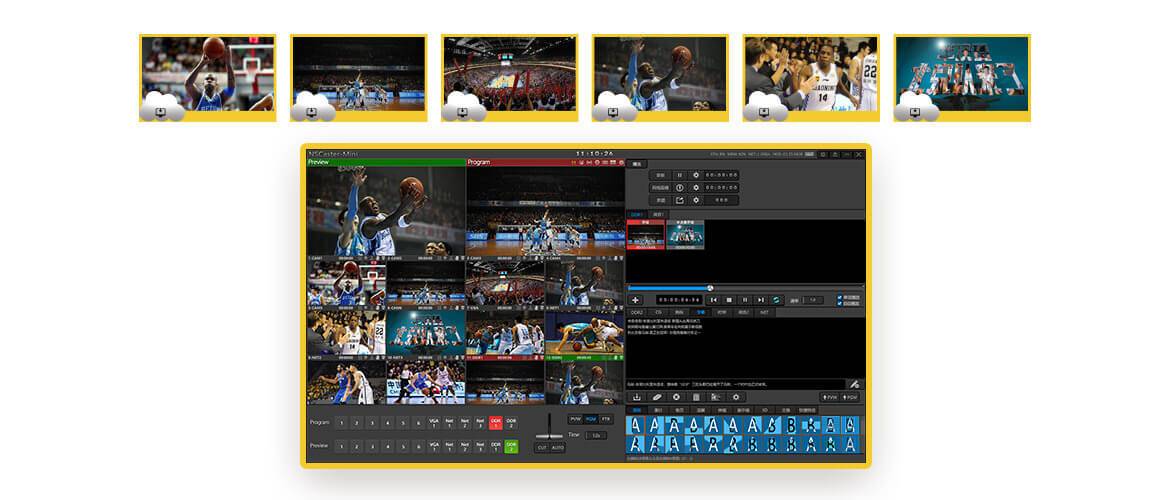

Professional Transition Effects

NSCaster-Mini support direct cut and transition effects. It embedded over 200 real time special effects such as erasing, sliding, dissolving, scaling, picture in pictures, 3D and so on. Users can use control panel shortcuts or mouse to control.

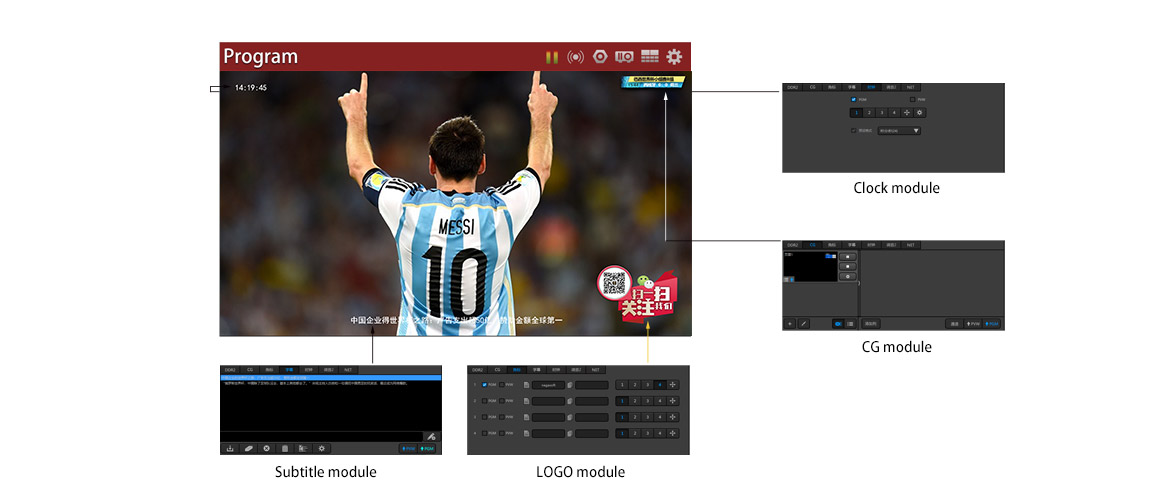

Subtitles and logo-free adjustment

NSCaster-Mini supports free addition of subtitle and logo in real-time broadcasting. It can support up to four logos, clocks, left-flying, roll-up and other subtitles, and adjust position and size freely.

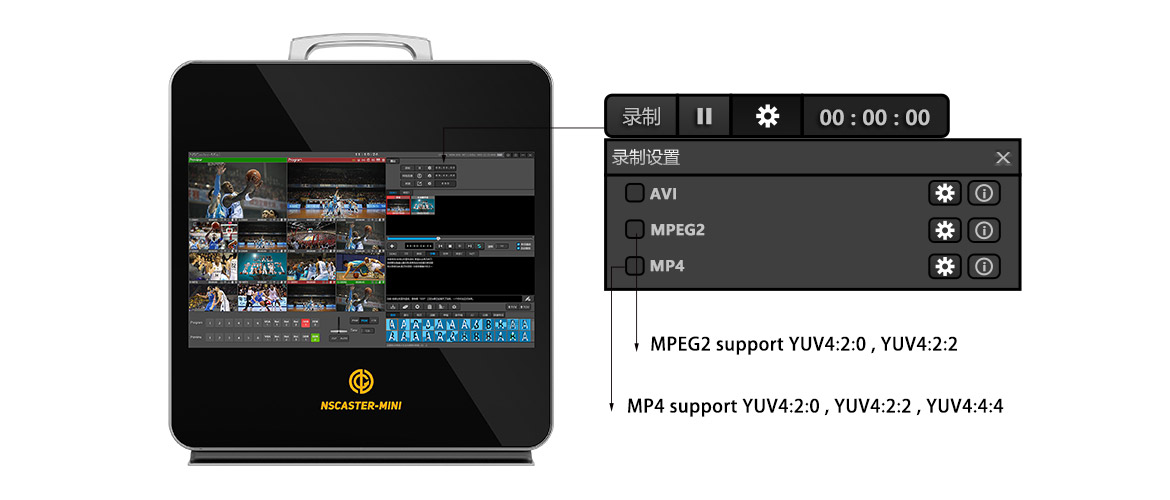

Multi-channel recording!!

NSCaster-Mini can record Multi-channel input and live broadcast output signals at the same time, realize recording of each input and output signal and save all the original video on site. It facilitates later editing and archiving by flexibly set the bit rate, resolution, recording format of each signal.

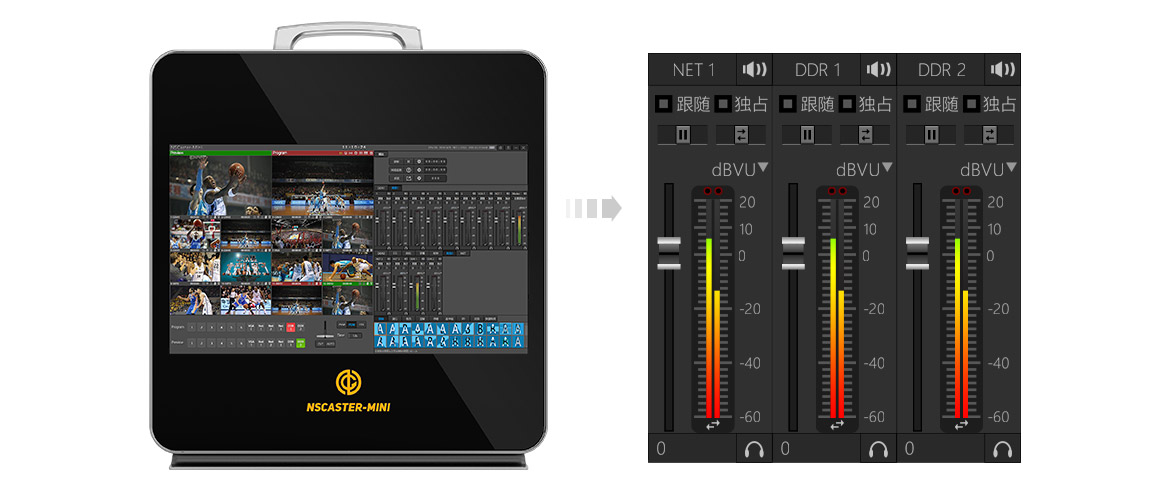

Smart audio mixer

NSCaster-Mini has its own mixer function, which can control the volume of each input and total output, and real-time set audio follower, exclusive, duplicate, mute, monitor the stereo mixing effect of several different audio sources.

NSCaster Prototypes Compare Table

Models NSCaster 351 NSCaster 558 NSCaster Mini
Case Portable Case
Built-in two 23″ Full HD monitor
Portable Case
Built-in 17.3″ Full HD monitor
Portable Case
Built-in 11.6″ Full HD monito
Video Format SD/HD SD/HD SD/HD
Total Channels 12 12 12
Video Input Channels 5 5 4
NET Channels 3 3 5
DDR Channels 2 2 2
VI Channels 2 2 0
Video Input 4 x SDI/HD-SDI/3G-SDI
1 x SDI/HDMI/DVI/VGA/Componet
4 x SDI/HD-SDI/3G-SDI
1 x SDI/HDMI/DVI/VGA/Componet
4 x SDI/HD-SDI/3G-SDI
Audio Input 1 Channel 1/4″ TRS Stereo Mic Input
(Support +48 Phantom Power).
1 Channel 1/4″ TRS Stereo Line Input.
1 Channel 3.5 mm Mic Input.
1 Channel 3.5 mm Line Input.
SDI/HDMI Embedded Audio.
2 Channels XLR/TRS Balanced Mic/Line Input
(Support +48 Phantom Power).
1 Channel 3.5 mm Mic Input.
1 Channel 3.5mm Line Input.
SDI/HDMI Embedded Audio.
2 Channels TRS Balanced Mic/Line Input
1 Channel 3.5 mm Mic Input.
1 Channel 3.5mm Line Input.
SDI/HDMI Embedded Audio.
Video Output 1 x SDI/HD-SDI
1 x HDMI
1 x SDI/HD-SDI
1 x HDMI
4 x SDI LOOP out
1 x SDI/HD-SDI
1 x HDMI
4 x SDI LOOP out
Audio Output 2 Channels 1/4″ TRS Stereo Line Output.
1 Channel 3.5 mm Output.
SDI/HDMI Embedded Audio.
2 Channels XLR/TRS Balanced Output.
1 Channel 1/4″ TRS Stereo monitor Output.
1 Channel 3.5mm Output.
SDI/HDMI Embedded Audio.
2 Channels TRS Balanced Output.
1 Channel 3.5mm Output.
SDI/HDMI Embedded Audio.
Projector Output
TALLY 6 Channels 8 Channels -
Control Keyboard NCP350 Built-in -
Storage 128GB SSD
1TB SATA HDD
128GB SSD
1TB SATA HDD
128GB SSD
1TB SATA HDD
Hot-Plugging SATA HDD 5 Slots 1 Slots -
Built-in Keyboard and Mouse -
Built-in Speaker -
Built-in DVD R/W -
Built-in WIFI
Built-in Gigabit Ethernet 1 1 1
USB 6 6 6
PGM/PVW/Channels Monitor

NSCaster Mini Introduction Video

VIDEO
